Thermo-Electric cell design

Reducing energy consumption by design





 Design improvement of the Hall-Héroult by trial and error is not practical. However, LMRC advanced mathematical modelling tools can enhance the process of cell design.  The LMRC 3D Thermo-Electric model  is able to simulate the resultant thermal and electrical conditions in the cell. This includes prediction of the superheat, ledge profile and more.  The LMRC team can simulate cell designs prior to installation, detect design faults, and recommend improvements to both design  that reduce energy consumption.


Learn more

----------------------------------------------------------------------------



Quarter Cell 3D Thermo-Electrical Model

Review the Entire Cell Including the Corners

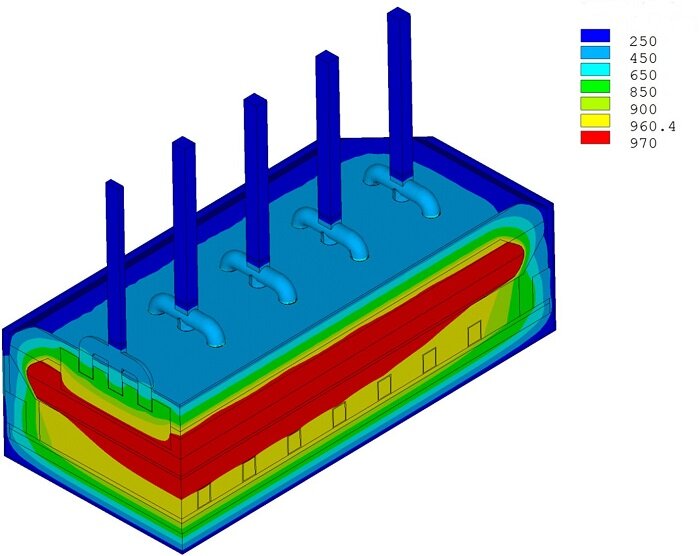

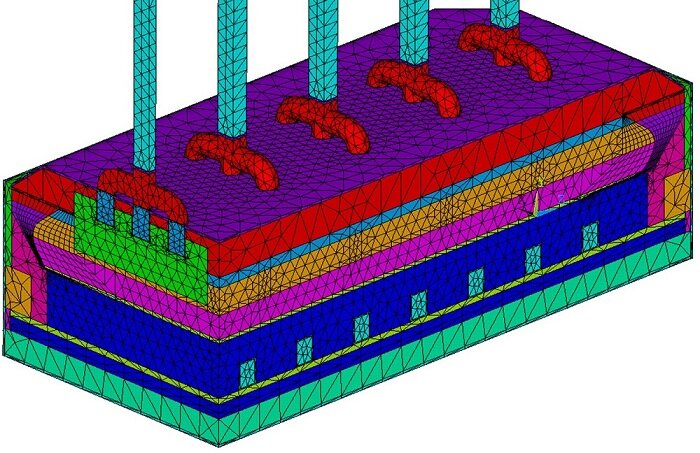

Quarter cell 3D model is the current benchmark of Thermo-electrical modelling of aluminium reduction cell , due to the symmetry of the cell the model reveal the condition of the entire cell and  provides additional data to the classic “slice model”  such as information on the cell end wall and corners.


--------------------------------------------------------------------------------------------------------------------



Revolutionary Dynamic moving ledge algorithm

Knowing the effect of thermo-balance on ledge profile

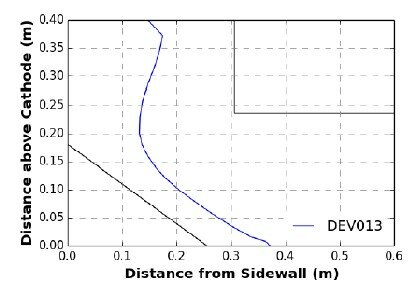

The ‘moving ledge algorithm’ developed by LMRC can predict the impact of cell design – as well as work practices – on ledge profile.  This information can be used as a tool to improve the lifespan of cells by designing sufficient ledge to protect cell sidewall without encapsulating the anodes.

----------------------------------------------------------------------------------------------------------------------------------



Change Cell Conditions with Confidence

Predicting effects of process control and materials changes







The LMRC 3D Thermo-electrical model can predict the effect of changes such as increases in line current, change in lining design, or change anode cover thickness and new operating practices on the heat balance of the cell. Using LMRC team’s expertise in aluminium smelting and reduction cell materials, we can recommend improvements that were simulated and verified by the model to both design and operating practices that reduce energy consumption the will maximise performance without compromising the integrity of the cell lining.
